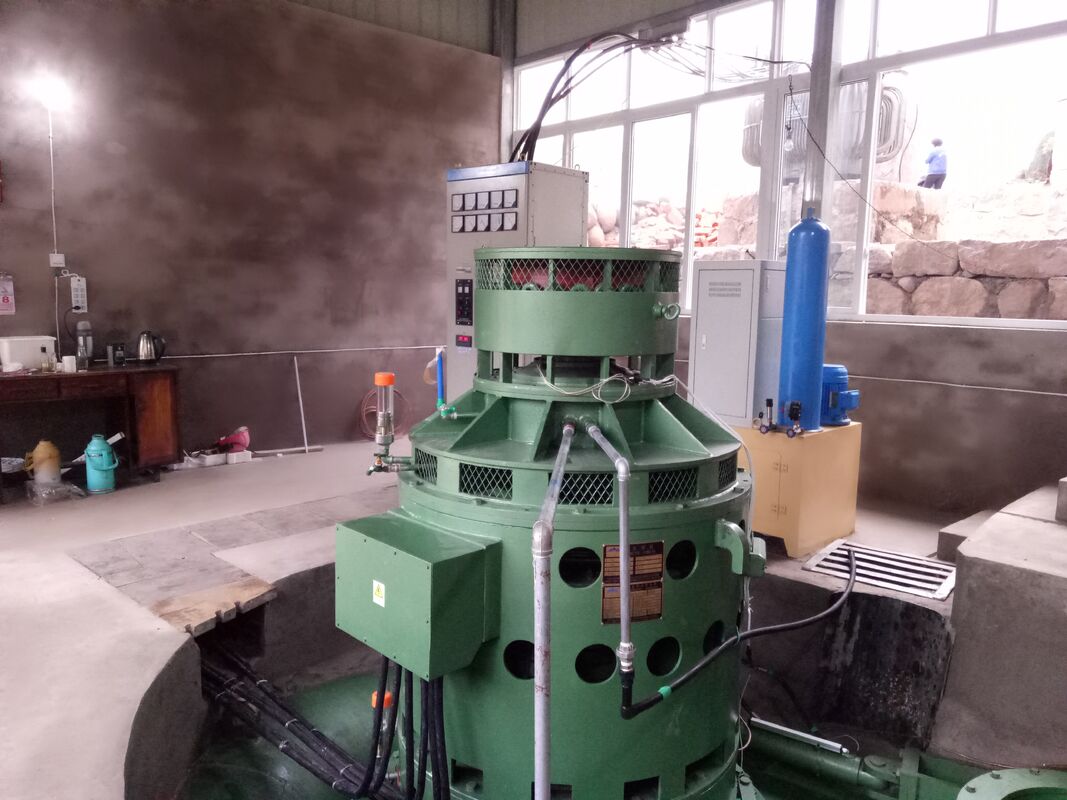

6300V Generator Voltage Kaplan Hydro Turbine with Stainless Steel Blade and Adjustable Runner Blade Angle 15° to 30° for Power Generation
Détails sur le produit:
| Nom de marque: | Wawushan |
| Certification: | ISO9001 |
| Numéro de modèle: | ZDJ50220 |
Conditions de paiement et expédition:
| Minimum Order Quantity: | 1 |
|---|---|
| Prix: | 50000-100000 |
| Packaging Details: | Export |
| Delivery Time: | 6 Months |
| Payment Terms: | L/C |
| Supply Ability: | 100 Units Per Year |
|
Détail Infomation |
|||
| Tension de générateur: | Pour l'électricité | hauteur d'eau: | 8 m |
|---|---|---|---|
| Guide Vane Material: | inoxydable/fonte | Puissance nominale: | 2-50MW |
| entrée d'eau: | Verticale | Matériau de guidage Vanes: | ZG20SiMn |
| Angle de la lame du coureur: | 15° à 30° | Tête nominale: | 2-200m |
| Mettre en évidence: | 6300V Generator Voltage Kaplan Hydro Turbine,Stainless Steel Blade Kaplan Hydro Turbine,Adjustable Runner Blade Angle 15° to 30° Kaplan Hydro Turbine |
||
Description de produit
6300V Generator Voltage Kaplan Hydro Turbine
A highly efficient hydraulic water turbine featuring stainless steel blades and adjustable runner blade angle from 15° to 30° for optimal power generation efficiency.
Product Overview
The Kaplan Hydro Turbine is a versatile water power turbine engineered to convert flowing water energy into electricity with superior performance across varying flow conditions. This hydraulic water turbine excels in both small-scale and large-scale hydroelectric projects.
Key Features
- Stainless steel blades for enhanced durability and corrosion resistance
- Adjustable runner blade angle (15° to 30°) for optimal performance
- Wide power range: 100KW to 30,000KW
- Vertical water inlet design for minimized hydraulic losses
- Adjustable guide vanes for precise water flow control
- Oil-water cooling bearing system for operational stability
- Service life exceeding 30 years
Technical Specifications
| Housing Material | Carbon Steel |
| Rated Head Range | 2-200 meters |
| Guide Vanes Material | ZG20SiMn |
| Bearing Cooling Type | Oil-water Cooling |
| Runner Material | Stainless Steel (06Cr13Ni4Mo) |
| Power Output | 100KW - 30,000KW |
| Runner Blade Angle | 15° - 30° |
Applications
Ideal for small to medium-sized hydroelectric plants, river installations, dams, and water reservoirs. Suitable for renewable energy projects, irrigation systems, and upgrading existing hydroelectric stations in remote areas with limited grid access.
Customization Options
Customize your Kaplan Hydro Turbine with rated power from 2MW to 50MW, adjustable blade angles, and material selections to match specific project requirements.
Technical Support & Services
Comprehensive support including installation guidance, maintenance programs, spare parts supply, performance monitoring, and staff training to ensure optimal turbine operation and longevity.
Performance Highlights
Operates efficiently across head ranges from 2-200 meters with power generation capabilities from 100KW to 30,000KW, making it a versatile solution for sustainable hydroelectric power generation worldwide.
